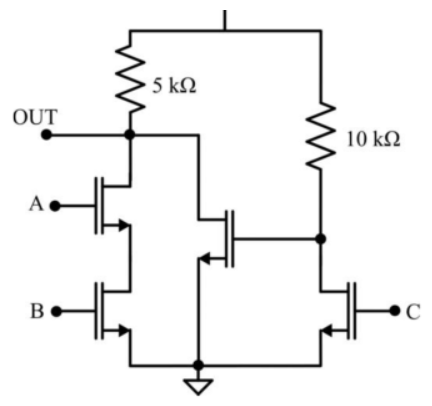

The MOSFET switches shown in the circuit are ideal.

Which of the following is the correct option for Boolean logical expression of the output (OUT), and the maximum possible power (P) consumed by the circuit?

  1. $\mathrm{OUT}=\overline{\mathrm{AB}+\overline{\mathrm{C}}}, \mathrm{P}=5 \mathrm{~mW}$
  2. $\mathrm{OUT}=\overline{(\mathrm{A}+\mathrm{B}) \overline{\mathrm{C}}}, \mathrm{P}=5 \mathrm{~mW}$
  3. $\mathrm{OUT}=\overline{\mathrm{AB} \overline{\mathrm{C}}}+\overline{\mathrm{C}}, \mathrm{P}=7.5 \mathrm{~mW}$
  4. $\mathrm{OUT}=\overline{\mathrm{AB}} \mathrm{C}, \mathrm{P}=7.5 \mathrm{~mW}$
