GATE Electrical 2023 | Question: 49

• recategorized by
842 views
0 0 votes

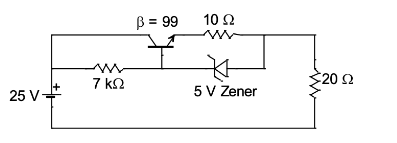

The Zener diode in circuit has a breakdown voltage of $ 5 \mathrm{~V} \text .$ The current gain $\beta$ of the transistor in the active region in $99.$ Ignore base-emitter voltage drop $ V_{B E} $. The current through the $20 \: \Omega$ resistance in milliamperes is_______(Round off to $2$ decimal places).
