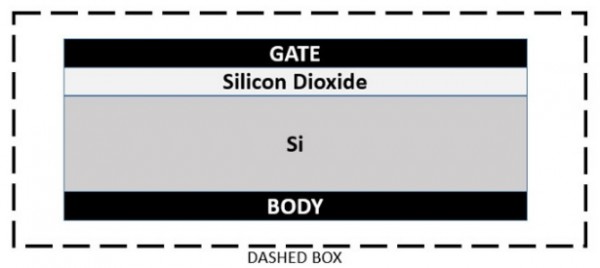

0 0 votes The cross-section of a metal-oxide-semiconductor structure is shown schematically. Starting from an uncharged condition, a bias of $\text{+3 V}$ is applied to the gate contact with respect to the body contact. The charge inside the silicon dioxide layer is then measured to be $\text{+Q}$. The total charge contained within the dashed box shown, upon application of bias, expressed as a multiple of $\text{Q}$ (absolute value in Coulombs, rounded off to the nearest integer) is___________ Analog and Digital Electronics gate2020-ee numerical-answers analog-and-digital-electronics + – go_editor 450 views answer comment Share Follow 0 reply Please log in or register to add a comment.
