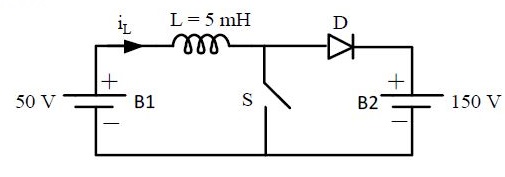

0 0 votes A dc to dc converter shown in the figure is charging a battery bank, $B2$ whose voltage is constant at $150 \: V$. $B1$ is another battery bank whose voltage is constant at $50 \: V$. The value of the inductor, $L$ is $5$ mH and the ideal switch, $S$ is operated with a switching frequency of $5$ kHz with a duty ratio of $0.4$. Once the circuit has attained steady state and assuming the diode D to be ideal, the power transferred from $B1$ to $B2$ (in Watt) is ___________ (up to $2$ decimal places) Power Electronics gate2018-ee numerical-answers power-electronics electric-circuits + – Arjun 294 views answer comment Share Follow 0 reply Please log in or register to add a comment.
