GATE Electrical 2017 Set 2 | Question: 24

• recategorized by
375 views
0 0 votes

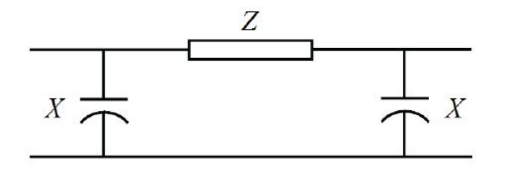

The nominal- $\pi$ circuit of a transmission line is shown in the figure.

Impedance $Z=100 \angle 80^{\circ} \Omega$ and reactance $X=3300 \Omega$. The magnitude of the characteristic impedance of the transmission line, in $\Omega$, is __________. (Give the answer up to one decimal place.)
