GATE Electrical 2022 | Question: 24

• recategorized by
490 views
0 0 votes

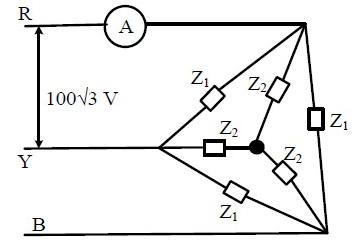

Two balanced three-phase loads, as shown in the figure, are connected to a $100\sqrt{3}\:V$, three-phase, $50\:Hz$, main supply. Given $Z_{1} = \left ( 18 +j24 \right )\Omega$ and $Z_{2} = \left ( 6 +j8 \right )\Omega$. The ammeter reading, in amperes, is ____________________. (round off to nearest integer)



Please log in or register to answer this question.
