GATE Electrical 2024 | Question-48

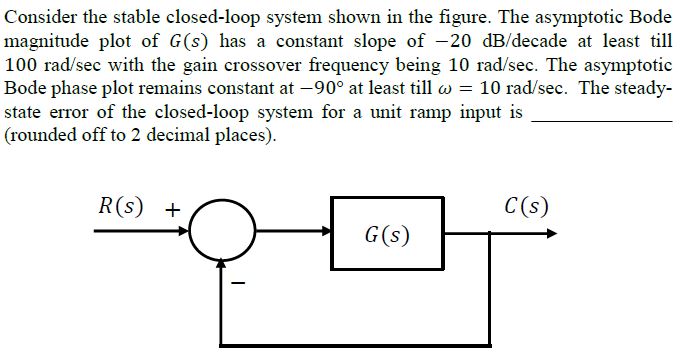

Consider the stable closed-loop system shown in the figure. The asymptotic Bode magnitude plot of $G(s)$ has a constant slope of $-20 \mathrm{~dB} /$ decade at least till $100 \mathrm{rad} / \mathrm{sec}$ with the gain crossover frequency being $10 \mathrm{rad} / \mathrm{sec}$. The asymptotic Bode phase plot remains constant at $-90^{\circ}$ at least till $\omega=10 \mathrm{rad} / \mathrm{sec}$. The steadystate error of the closed-loop system for a unit ramp input is (rounded off to 2 decimal places).

edited by

Please log in or register to answer this question.

Answer:
