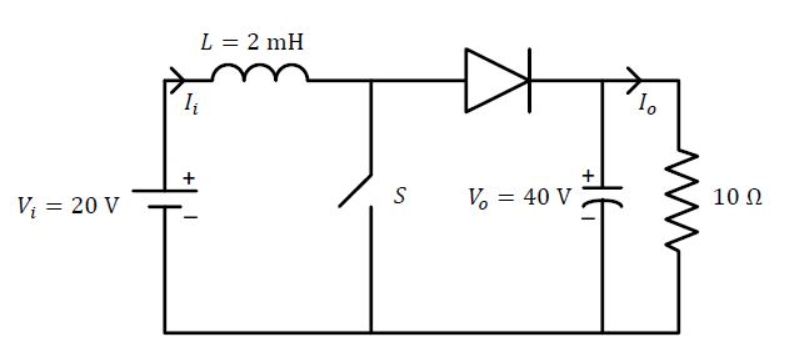

In the $\mathrm{DC}-\mathrm{DC}$ converter shown in the figure, the current through the inductor is continuous. The switching frequency is $500 \mathrm{~Hz}$. The voltage $\left(V_{o}\right)$ across the load is assumed to be constant and ripple free. The peak inductor current in amperes is ______________ (rounded off to the nearest integer).
