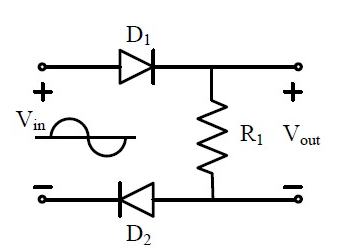

For the circuit shown below with ideal diodes, the output will be

  1. $V_{\text{out}} = V _{\text{in}}$ for $V_{\text{in}}> 0$
  2. $V_{\text{out}} =  V_{\text{in}}$ for $V_{\text{in}}< 0$
  3. $V_{\text{out}} = -V_{\text{in}}$ for $V_{\text{in}}> 0$
  4. $V_{\text{out}} = -V_{\text{in}}$ for $V_{\text{in}}< 0$
in new edited by
